Smartphone power efficiency comparison
Smartphone power efficiency comparison
This post is a work in progress.
Smartphone max package power
This section is a work in progress. I will try to find package power, or estimate from total device power.
- The iPhone 17 Pro Max can achieve up to 6.1 W of total device power.
- Older iPhones like the iPhone 15 Pro Max draw around 4.7 W.
- Many Android flagships can safely be assumed to be capable of at least 4.5 W of sustained total device power.

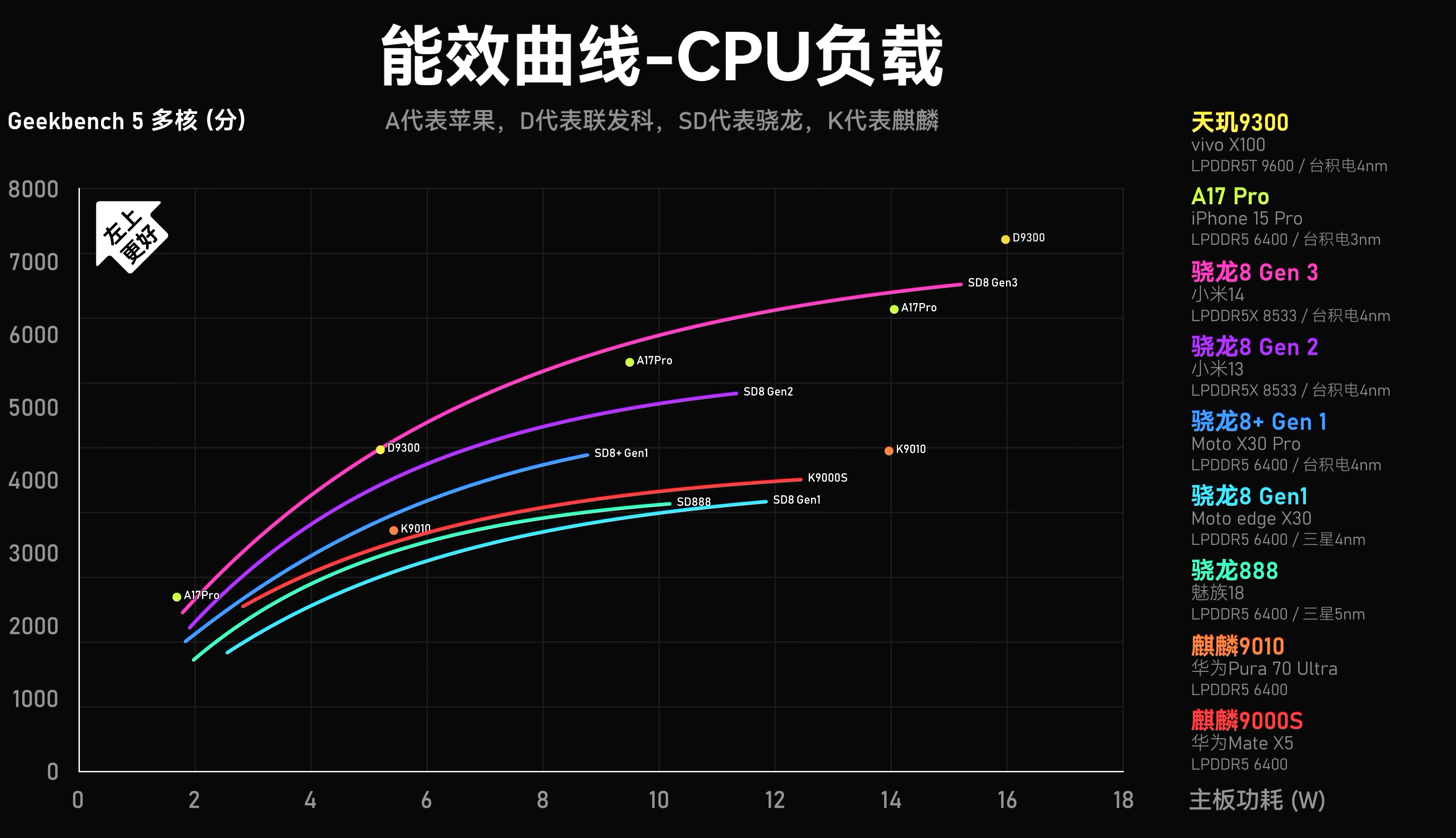

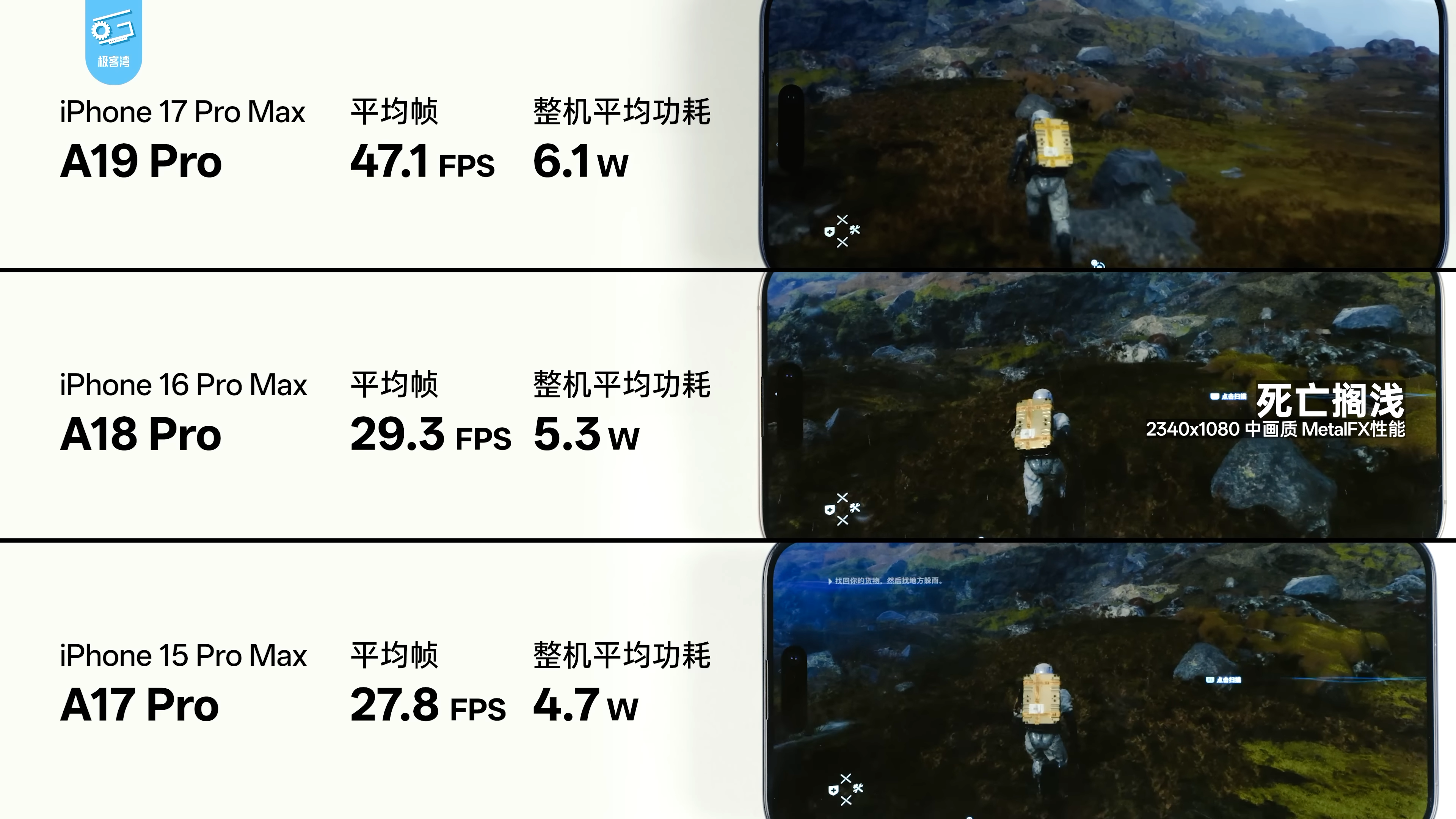

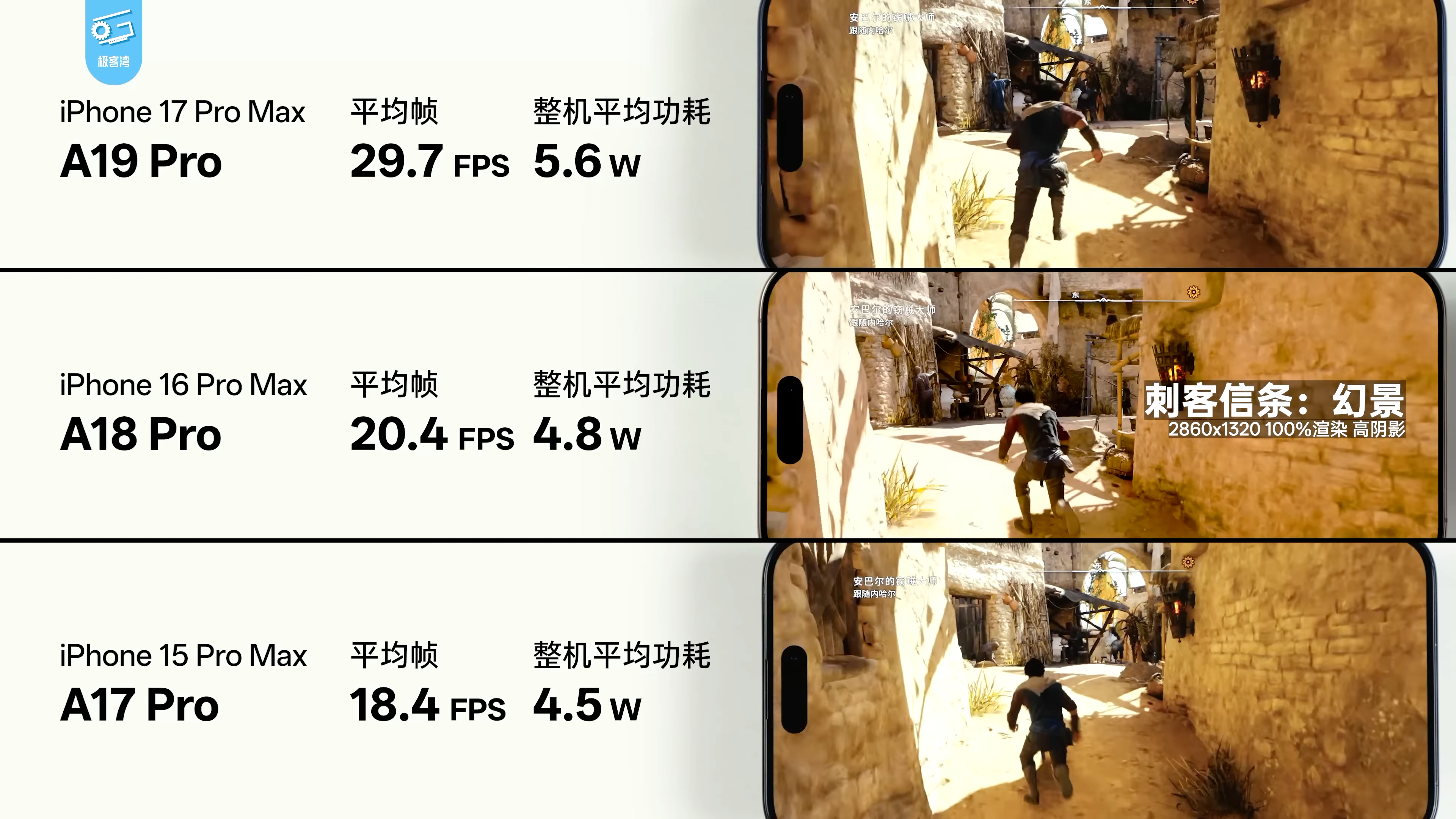

.png)
.png)
Source: 极客湾 Geekerwan - iPhone 17 series performance analysis (https://youtu.be/Y9SwluJ9qPI?si=-ybTY_EmoD46DQl2)
Huawei Kirin SoC comparison
| Chipset | CPU Architecture | GPU & NPU | Devices |
|---|---|---|---|
| Kirin 9000 TSMC 5nm | 8C / 8T 1x A77 @ 3.13 GHz 3x A77 @ 2.54 GHz 4x A55 @ 2.05 GHz | Mali-G78 MP24 Da Vinci (2B+1T) | Mate 40 Pro P50 Pro |
| Kirin 9000E TSMC 5nm | 8C / 8T 1x A77 @ 3.13 GHz 3x A77 @ 2.54 GHz 4x A55 @ 2.05 GHz | Mali-G78 MP22 Da Vinci (1B+1T) | Mate 40 MatePad 12.6 (2021 / 2022) |
| Kirin 9000S SMIC 7nm | 8C / 12T (SMT) 1x V120 @ 2.62 GHz (2T) 3x V120 @ 2.15 GHz (2T) 4x A510 @ 1.53 GHz | Maleoon 910 MP4 Ascend NPU | Mate 60 Pro Mate X5 |
| Kirin 9010 SMIC 7nm | 8C / 12T (SMT) 2x V121 @ 2.30 GHz (2T) 6x V121 @ 2.18 GHz (2T) 4x A510 @ 1.55 GHz | Maleoon 910 MP4 Ascend NPU | Pura 70 Pro+ Pura 70 Ultra |
Source: 极客湾 Geekerwan - Huawei Kirin 9010 in-depth analysis (https://youtu.be/73XUeYRFsZU?si=8uutjkdHqqgTgdjc&t=408)

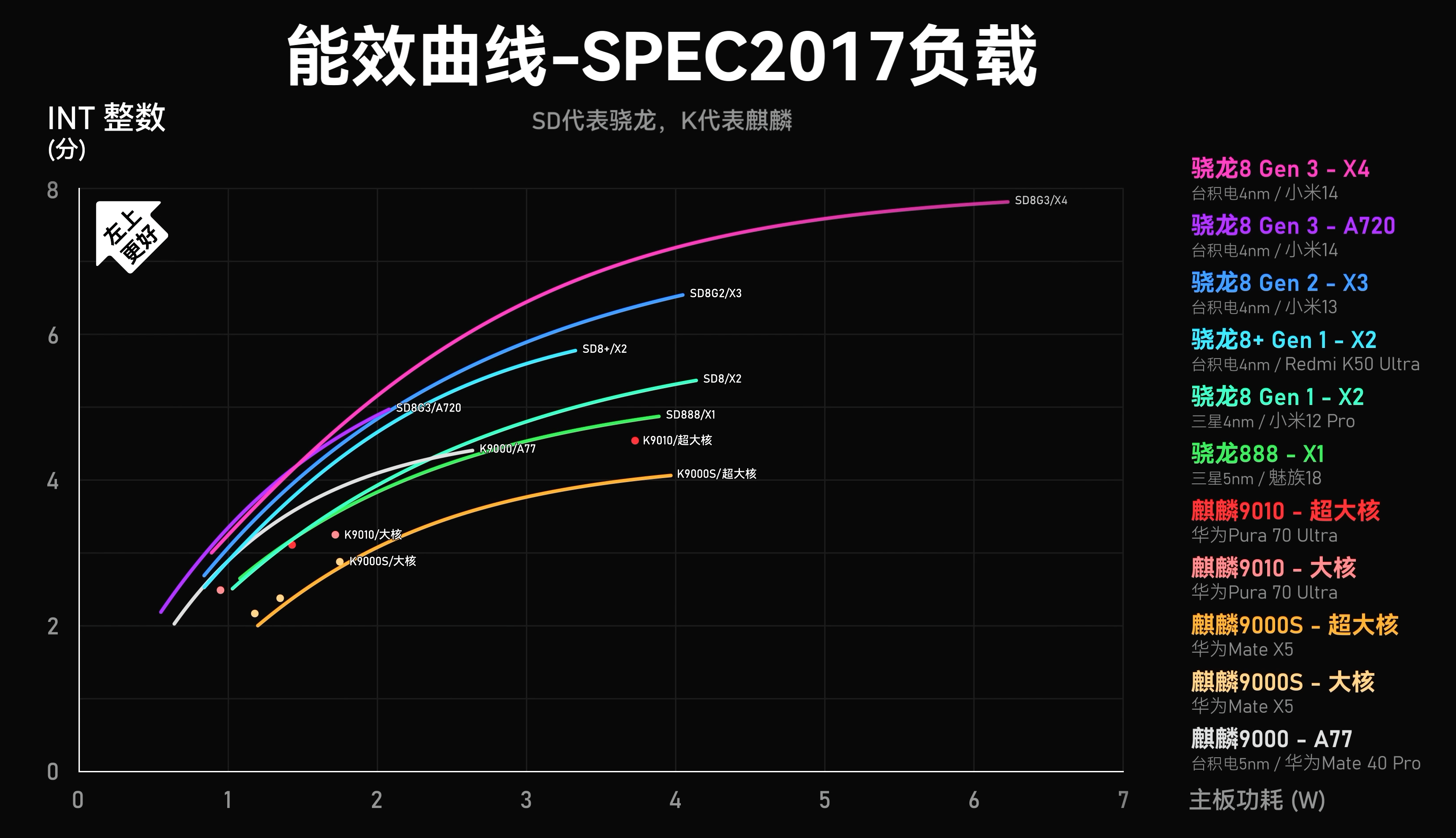

%20cropped.png)
Source: 极客湾 Geekerwan - Huawei Kirin 9010 in-depth analysis (https://youtu.be/73XUeYRFsZU?si=RXqVKMeL_exN-e2c&t=477)
